Electromagnetic Sine Plates
HECO and Fife-Pearce offer single and compound angle Electromagnetic Sine Plates.

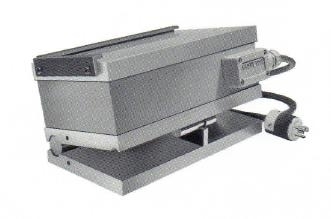

Electromagnetic Single Angle Sine Plates allow a workpiece to be positioned at one precise angle, making them ideal for straightforward angular grinding and machining applications. Electromagnetic Compound Angle Sine Plates provide adjustment along two axes, supporting more complex setups that require two angles to be established at the same time.
Both configurations use electromagnetic holding power to secure the workpiece during operation.
| Model | Sine | Surface Area | Height | Weight |
|---|---|---|---|---|
| Electromagnetic Single Angle Sine Plates | ||||
| EMSP 664-5 | 5.000 | 6 x 6 in | 4 3/8 in | 45 lb |
| EMSP 612-5 | 5.000 | 6 x 12 in | 5 in | 88 lb |
| EMSP 612-10 | 10.000 | 6 x 12 in | 5 in | 88 lb |
| EMSP 618-5 | 5.000 | 6 x 18 in | 5 5/8 in | 176 lb |
| EMSP 618-15 | 15.000 | 6 x 18 in | 5 5/8 in | 176 lb |
| Electromagnetic Compound Angle Sine Plates | ||||
| EMSPC 665 | 5.000 | 6 x 6 in | 5 5/8 in | 53 lb |
| EMSPC 612 | 5.000-10.000 | 6 x 12 in | 6 3/8 in | 104 lb |
| EMSPC 618 | 5.000-15.000 | 6 x 18 in | 7 3/8 in | 214 lb |
